Ethernet Cables and Fiber Optics

Understanding Ethernet Cables and Fiber Optics: A Comprehensive Guide

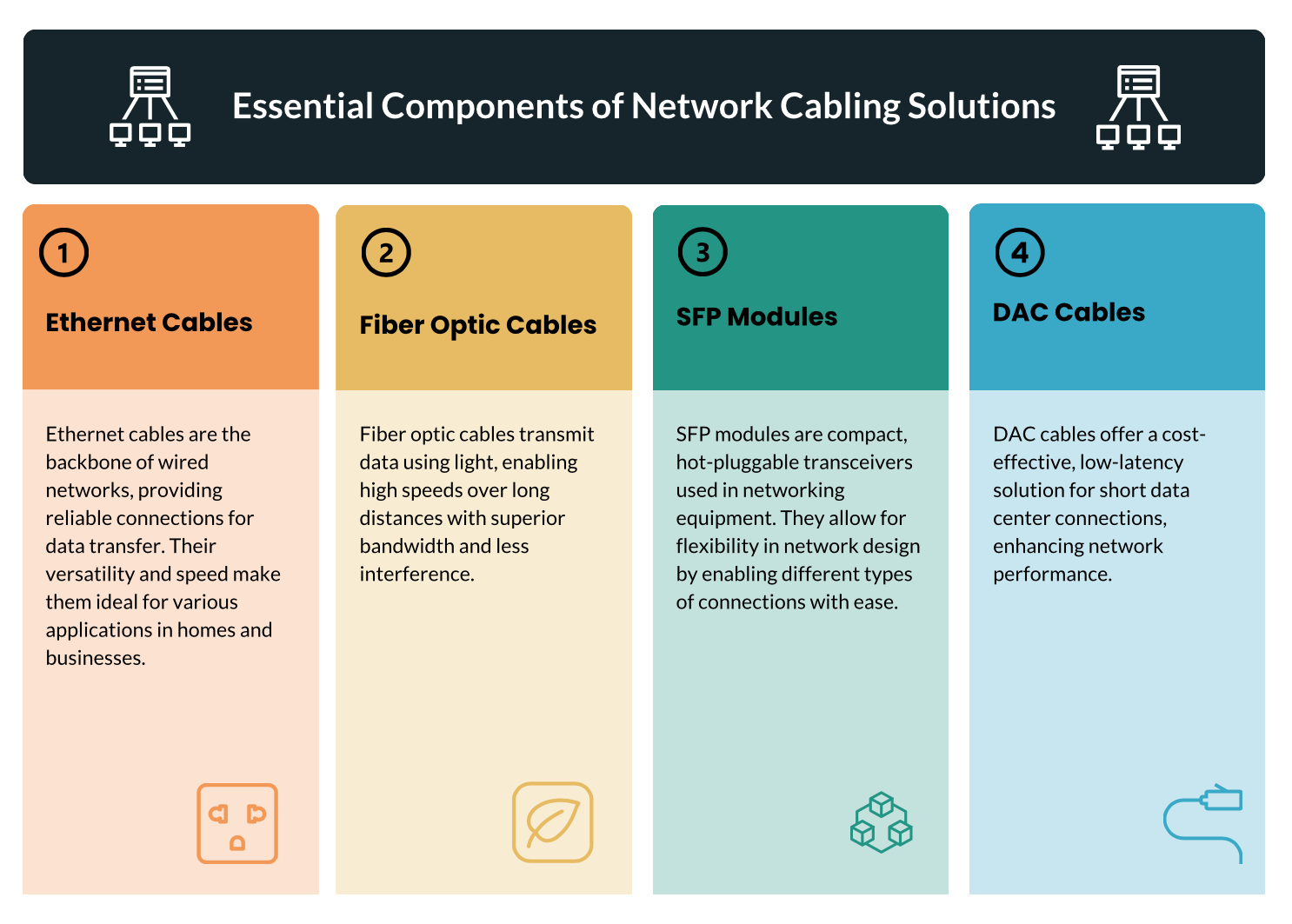

In today’s digital age, reliable and high-speed connectivity is essential for both personal and professional environments. Two of the most common technologies used to achieve this are Ethernet cables and fiber optics. This blog post will explore the various types of Ethernet cables, including Ethernet patch cords, SFP+ modules, DAC cables, and fiber optic cables, highlighting their features, uses, and benefits.

Ethernet Cables

What are Ethernet Cables?

Ethernet cables are the backbone of wired networking, allowing devices to communicate with each other over a local area network (LAN). They transmit data using electrical signals and are available in various categories, each supporting different speeds and distances.

Ethernet Patch Cords

Ethernet patch cords are short cables used to connect devices within a network, such as computers, routers, and switches. Typically, they come in various lengths and are made with either unshielded twisted pair (UTP) or shielded twisted pair (STP) wiring.

Key Features:

• Categories: Commonly available in Cat5e, Cat6, Cat6a, and Cat7, with each category supporting higher speeds and bandwidth.

• Length Options: Available in lengths ranging from a few inches to several feet, making them versatile for different setups.

• Color Coding: Often color-coded for easy identification and organization in network setups.

Use Cases:

• Connecting devices in a home or office network.

• Linking network switches to routers.

• Creating temporary connections for events or testing.

SFP+ Modules

SFP+ (Small Form-factor Pluggable Plus) modules are compact, hot-swappable transceivers used in networking equipment to facilitate high-speed data transmission. They are commonly used in data centers and enterprise networks.

Key Features:

• Speed: Supports data rates up to 10 Gbps.

• Flexibility: Can be used with various types of cables, including copper and fiber optic.

• Hot-Swappable: Can be replaced without shutting down the network, minimizing downtime.

Use Cases:

• Connecting switches to routers over long distances.

• Expanding network capabilities with additional ports.

• Upgrading existing network infrastructure without replacing entire devices.

DAC Cables

Direct Attach Copper (DAC) cables are a cost-effective solution for short-distance connections in data centers and enterprise networks. They consist of copper wire and are often used for connecting switches and servers.

Key Features:

• Cost-Effective: Generally cheaper than fiber optic solutions for short distances.

• Low Latency: Provides fast data transmission with minimal delay.

• Compact Design: Easy to manage and install in tight spaces.

Use Cases:

• Connecting servers to switches within the same rack.

• Short-distance interconnections in data centers.

• Temporary setups for testing or events.

Fiber Optic Cables

What are Fiber Optic Cables?

Fiber optic cables use light to transmit data, offering significantly higher speeds and bandwidth compared to traditional copper cables. They are made of thin strands of glass or plastic, allowing for long-distance communication without signal degradation.

Types of Fiber Optic Cables

1. Single-Mode Fiber (SMF):

   • Designed for long-distance communication.

   • Uses a single light path, allowing for higher bandwidth over longer distances (up to 100 km or more).

   • Ideal for telecommunications and large-scale networks.

2. Multi-Mode Fiber (MMF):

   • Suitable for shorter distances (up to 2 km).

   • Uses multiple light paths, making it more cost-effective for local area networks (LANs).

   • Commonly used in data centers and enterprise networks.

Key Features of Fiber Optic Cables:

• High Bandwidth: Supports higher data rates, making them ideal for high-demand applications.

• Long Distance: Capable of transmitting data over long distances without loss of quality.

• Immunity to Interference: Not affected by electromagnetic interference, ensuring stable connections.

Use Cases:

• Connecting remote locations in a corporate network.

• High-speed internet connections for homes and businesses.

• Backbone connections in data centers.

Conclusion

Understanding the different types of Ethernet cables and fiber optics is crucial for building a reliable and efficient network. Whether you are setting up a home office, expanding a corporate network, or establishing a data center, choosing the right cables—be it Ethernet patch cords, SFP+ modules, DAC cables, or fiber optic cables—will ensure optimal performance and connectivity. As technology continues to evolve, staying informed about these components will help you make the best choices for your networking needs.
